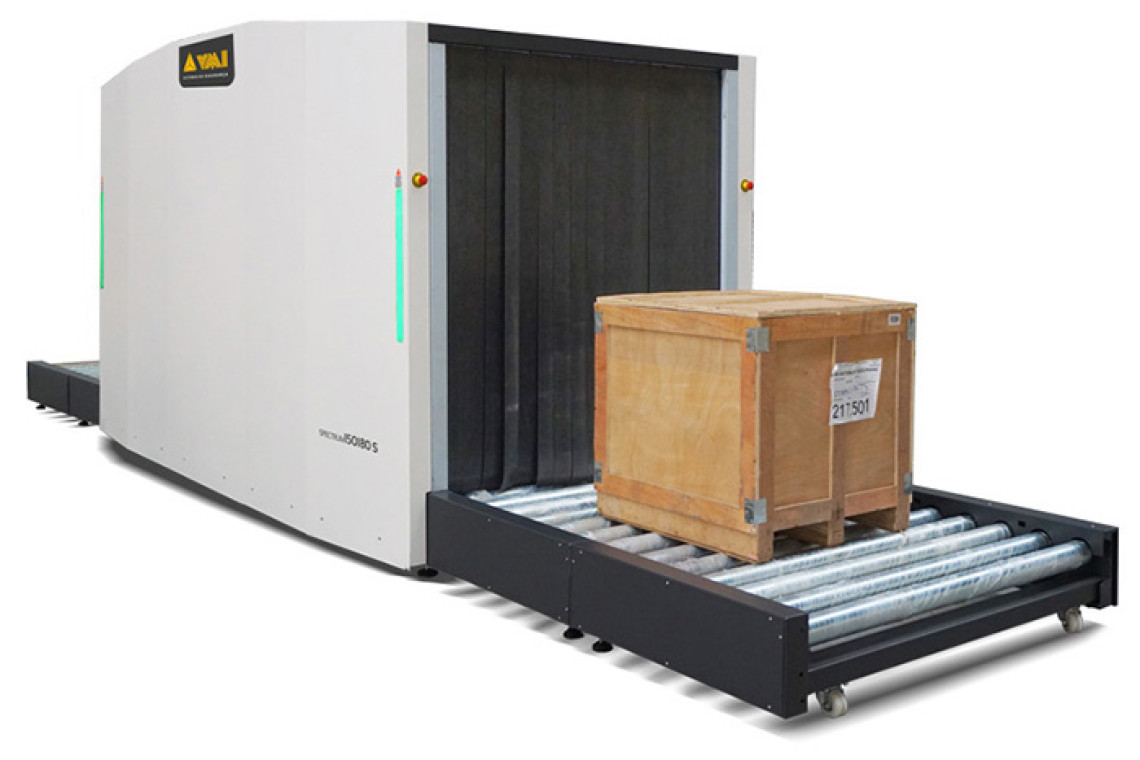

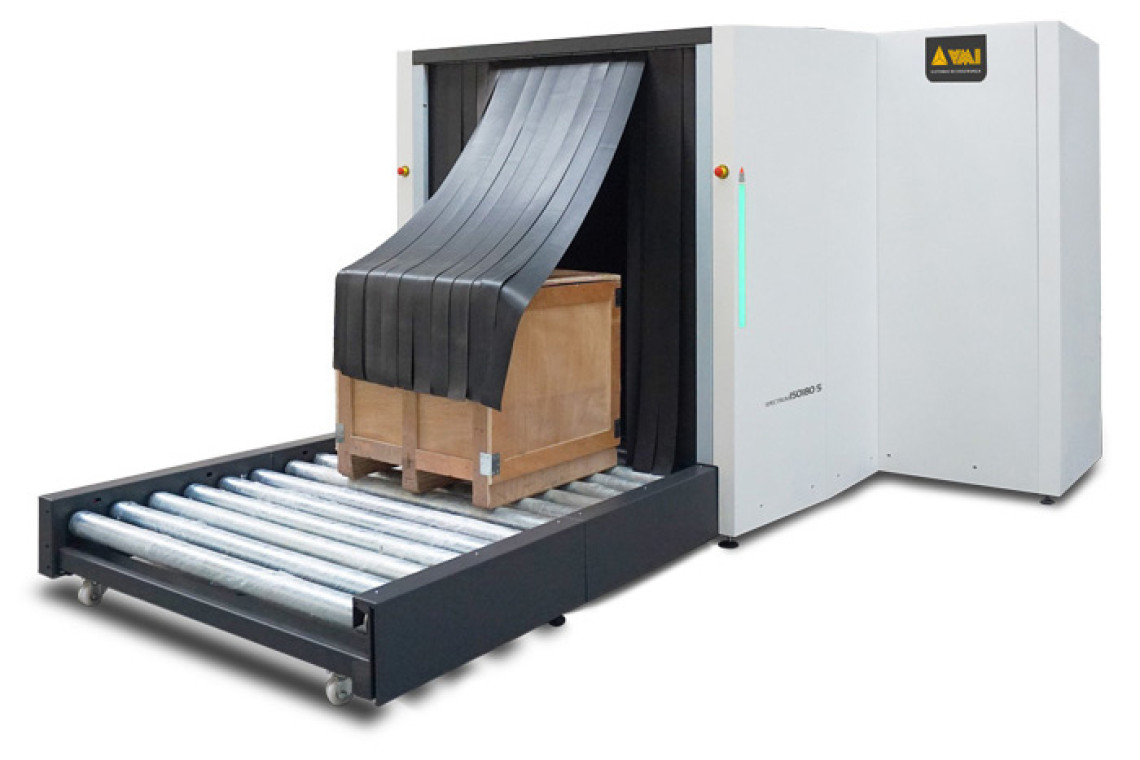

Spectrum 150180

High-energy scanner for pallets

lg_VMI_security1

The Spectrum 150180 has been specially designed to meet the needs and applications of warehouses, shippers, custom brokers and couriers for the airports.

Excellent picture quality. Organic materials shown in orange, metal material shown in blue, and a mixture of them shown in green.

scan07_bx
Dimensions (Single View) (Dual View)
length 5600mm 7100mm
width 2970mm 2970mm
height 2300mm 3000mm
Weight 2300kg
Tunnel Size 1553mm (W) / 1805mm (H)
Power 2.5 kVA
  Spectrum 150180 Standart DV
X-ray generator Monobloc 200kV X X(dual)
Documents Radiation report X X
Operating manual X X
Peripheral Operating keyboard X X
Monitor LCD 18,5″ X X
Dual monitor LCD 24″ (color, black/white) X X
Roller table 1000x1500mm with backstop X(2) X(2)
Software Software – TIP X X
Software – Threat auto detection system X X
Expanded image storage – up to 200.000 images X X
