Spectrum 6040

High-energy scanner for checkpoints

lg_VMI_security1

The Spectrum 6040 is made up of robust equipment specifically designed to meet the needs and applications that demand high inspection and image quality, such as airports, prisons, railways and subways, stadiums, courts, ordering services or where high security is required.

The Spectrum 6040 use a state-of-art high power x-ray generator (180kV) that meets the highest image quality and penetration requirements for even faster and more efficient inspection.

Excellent picture quality. Organic materials shown in orange, metal material shown in blue, and a mixture of them shown in green.

scan03
spectrum_6040_DV_net

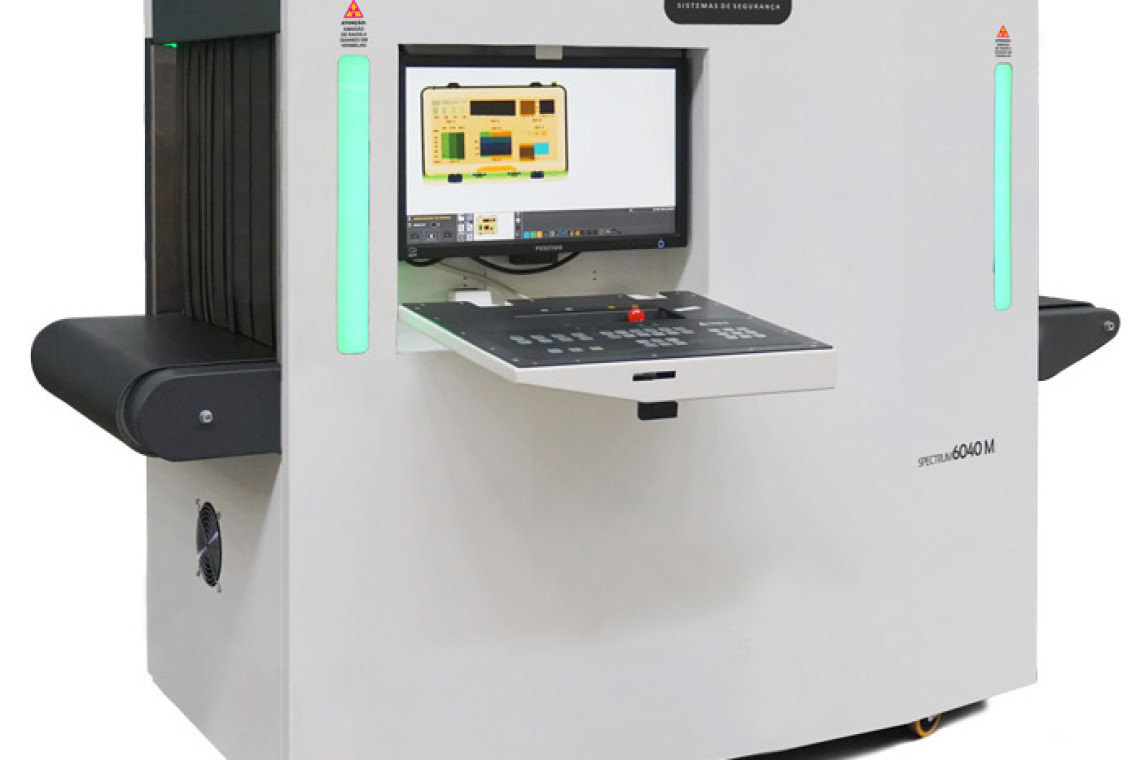

spectrum_6040_M
spectrum_6040_Plus
PreviousNext
  1. spectrum_6040_DV_net
  2. spectrum_6040_M
  3. spectrum_6040_Plus
Dimension 2042mm (L) / 850mm (W) / 1300mm (H)
Dimension Mobile 1550mm (L) / 850mm (W) / 1300mm (H)
Dimension DV 1980mm (L) / 1147mm (W) / 1240mm (H)
Weight 500kg
Weight DV 750kg
Tunnel Size 606mm (W) / 420mm (H)
Power 600 VA
Power DV 1 kVA
  Spectrum 6040 Standart Plus Mobile DV
Default Option Default Option Default Option Default Option
X-ray generator Monobloc 180kV operating at 170kV     X     X   X
Monobloc 160kV operating at 150kV X       X   X
Documents Radiation report X   X   X   X
Operating manual X   X   X   X
Peripheral Operating keyboard X   X   X   X
Monitor LCD 18,5″ X   X   Internal
Dual monitor LCD 18,5″ (color, black/white)   X   X     X
Robust castle, handle   X   X X
Monitor 18,5″ inside body equipment         X
Software Software – TIP X   X   X   X
Software – Threat auto detection system X   X   X   X
Software – High density auto detection X   X   X   X
Expanded image storage – up to 200.000 images X   X   X   X
